Dynaco SCA-35 35 Watt Integrated Stereo Vacuum Tube Amplifier
Dynaco SCA-35 35 Watt Integrated Stereo Vacuum Tube Amplifier
Couldn't load pickup availability
Specifications:
- Brand: Dynaco
- Model: SCA-35
- Inputs: 7x

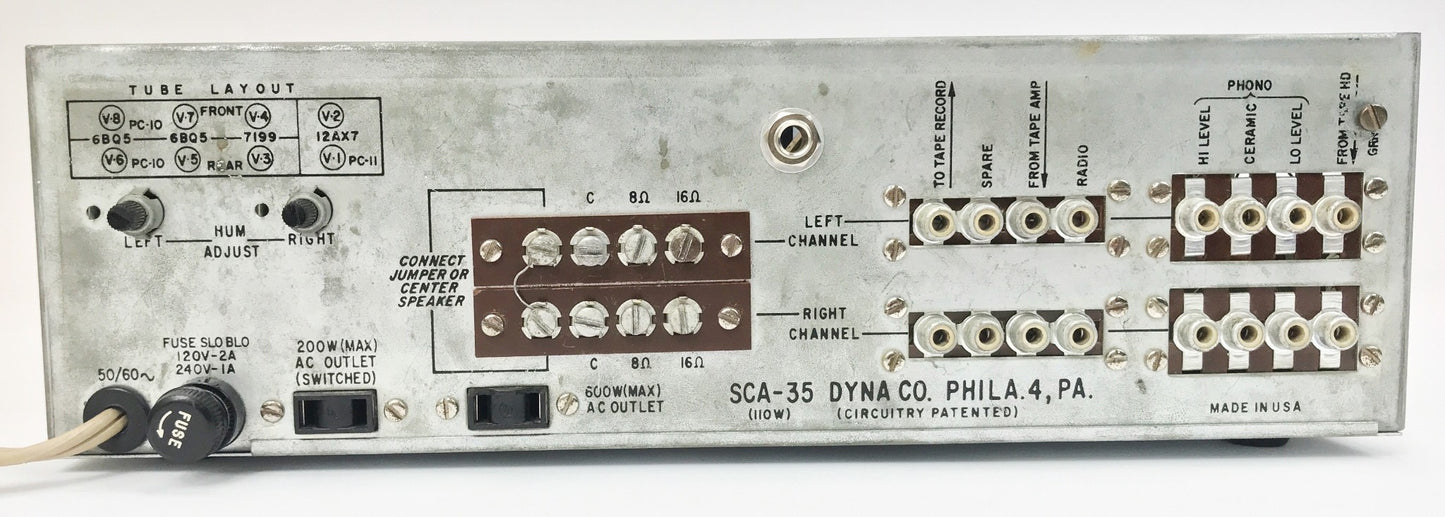

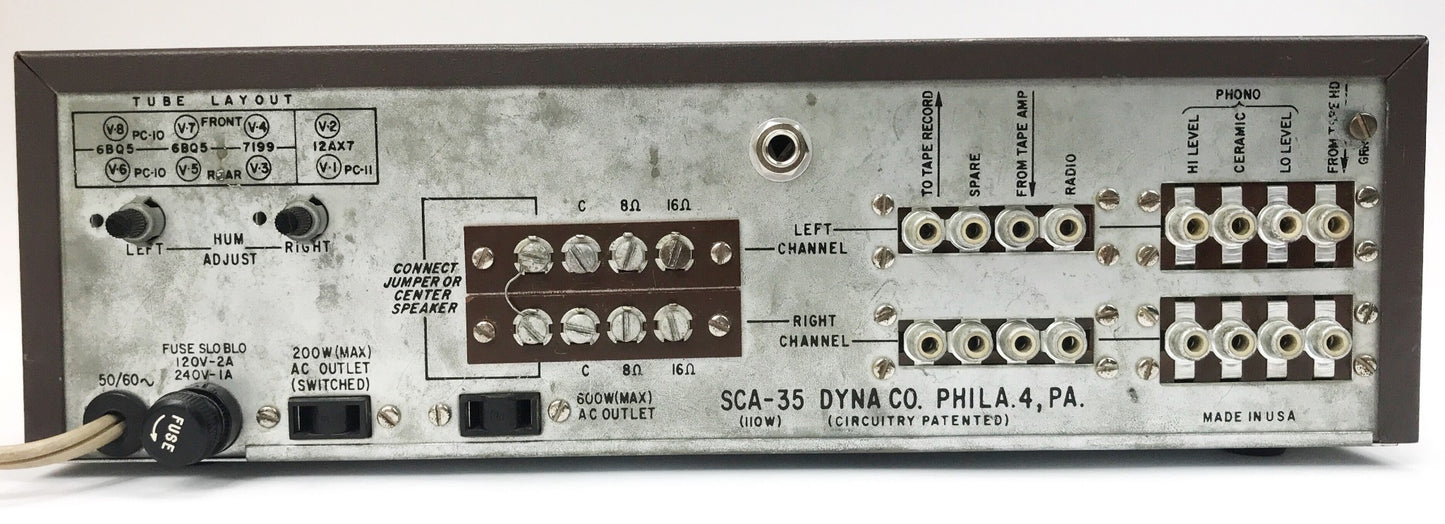

- Outputs: Constant level tape output, 8 and 16 Ω loudspeaker outputs and center-channel loudspeaker output

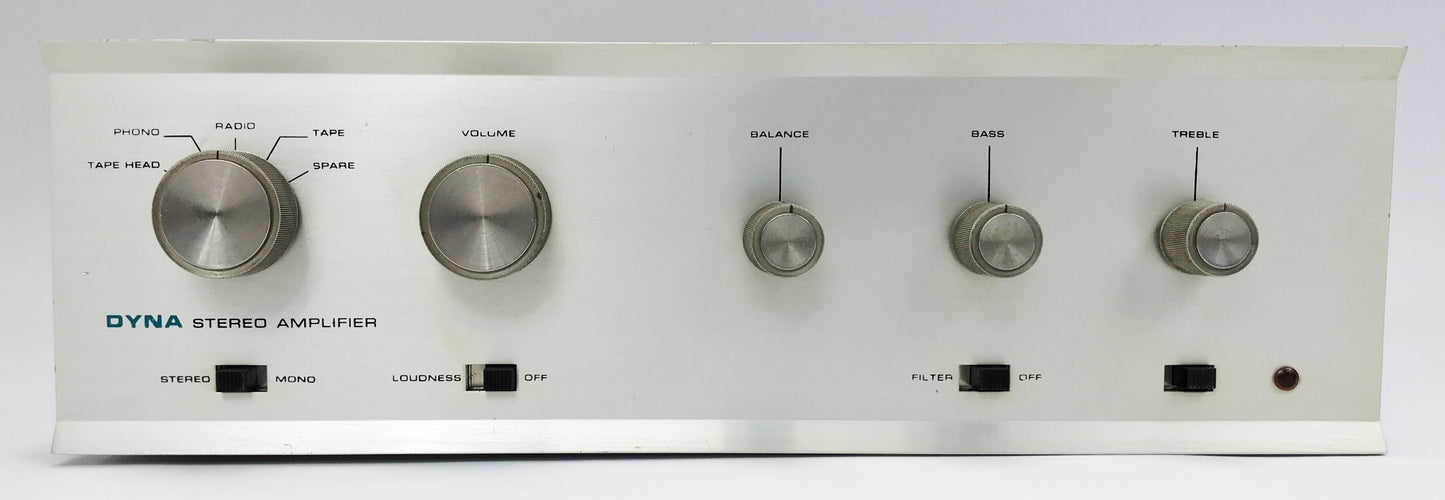

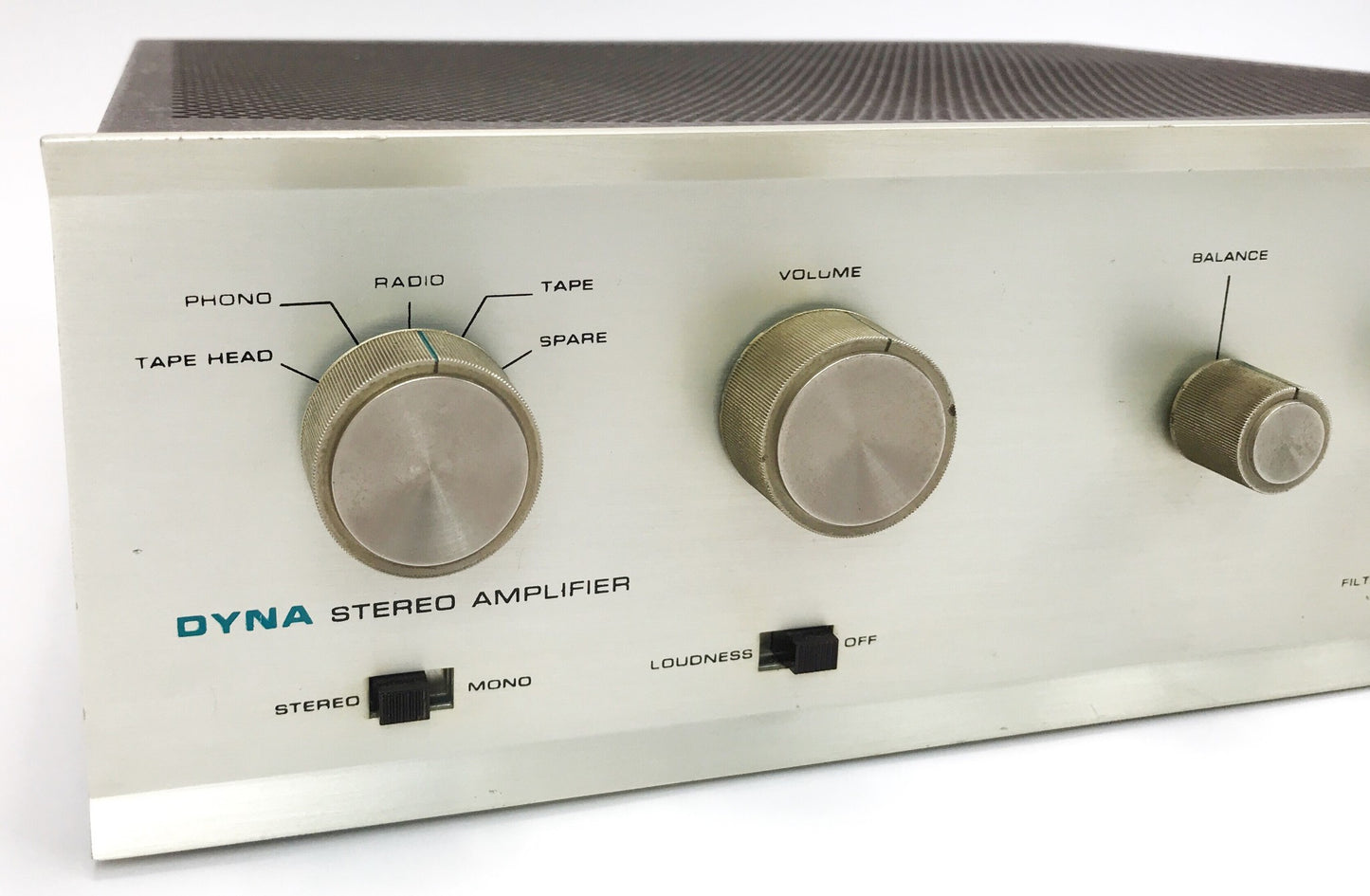

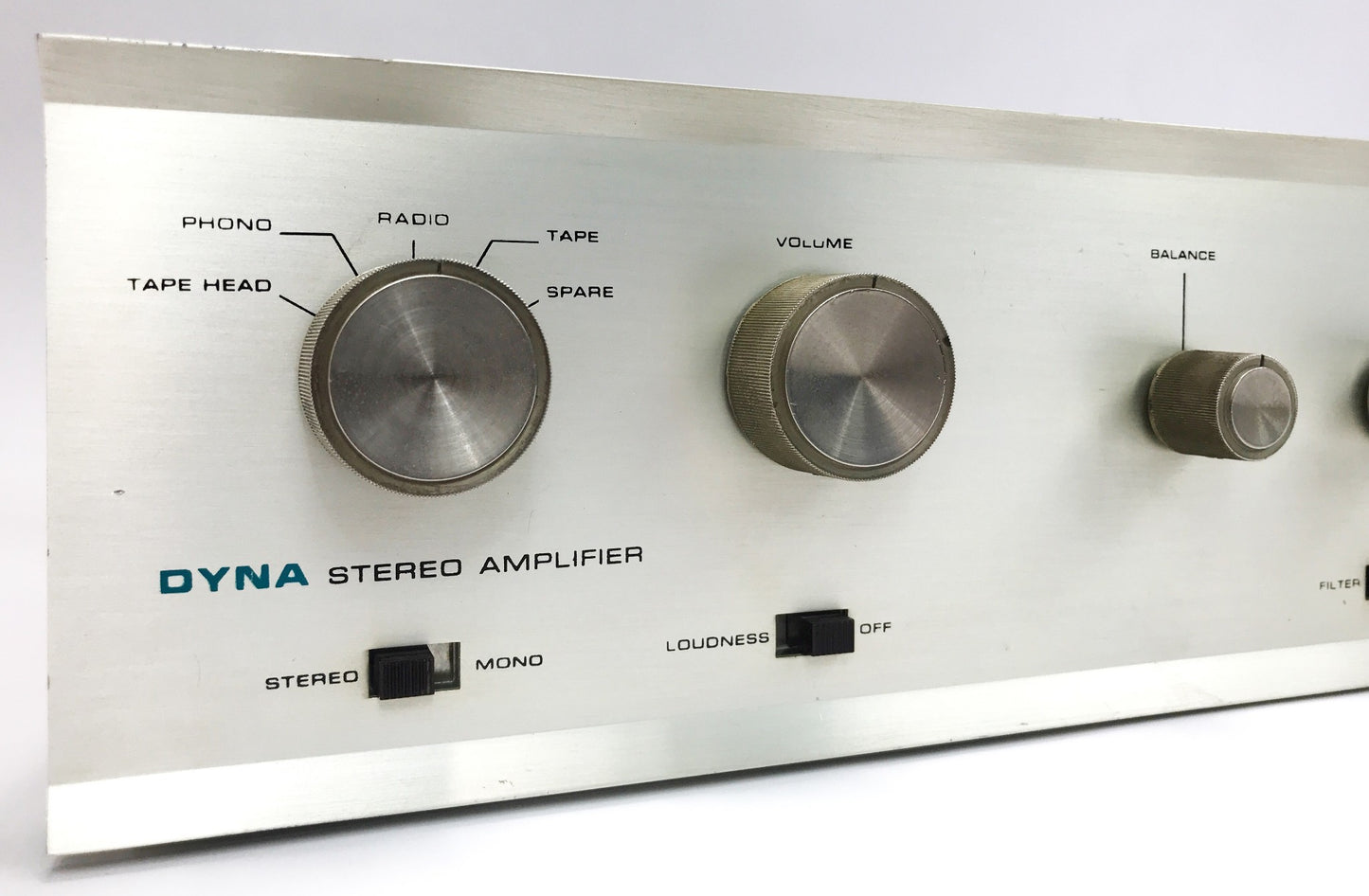

- Controls: Selector, Volume, Balance, Bass, Treble, Stereo-Mono Switch, Loudness Compensation Switch, Filter Switch and Power Switch
- Tone Control Range: +/- 12 db at 50 cps and 15 kc
- Sensitivity for Rated Output: 2.5 mV at tape head, 4 mV at low level magnetic phono, 1 volt at high level inputs.
- Power Output: 35 Watts
- Frequency Response: +/- 0.25 db from 20 cps and 20 kc
- Power Response: 20 cps to 20 ks without exceeding 1% distortion within 1 db of 17.5 watts (each channel)
- IM Distortion: Less than 1% at 17.5 watts (each channel).
- Hum and Noise: 70 db below rated output on low level inputs. 80 db down on high level inputs.

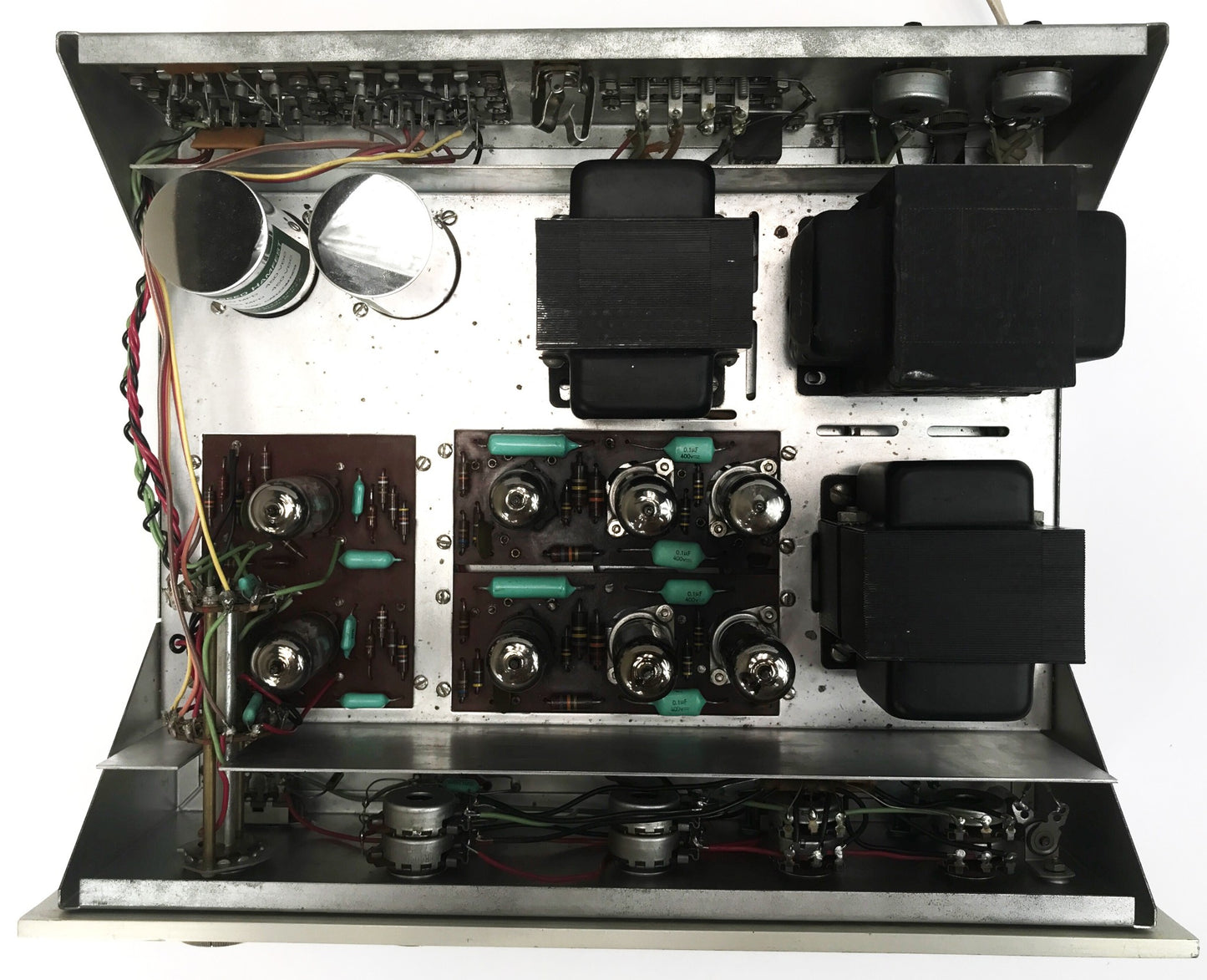

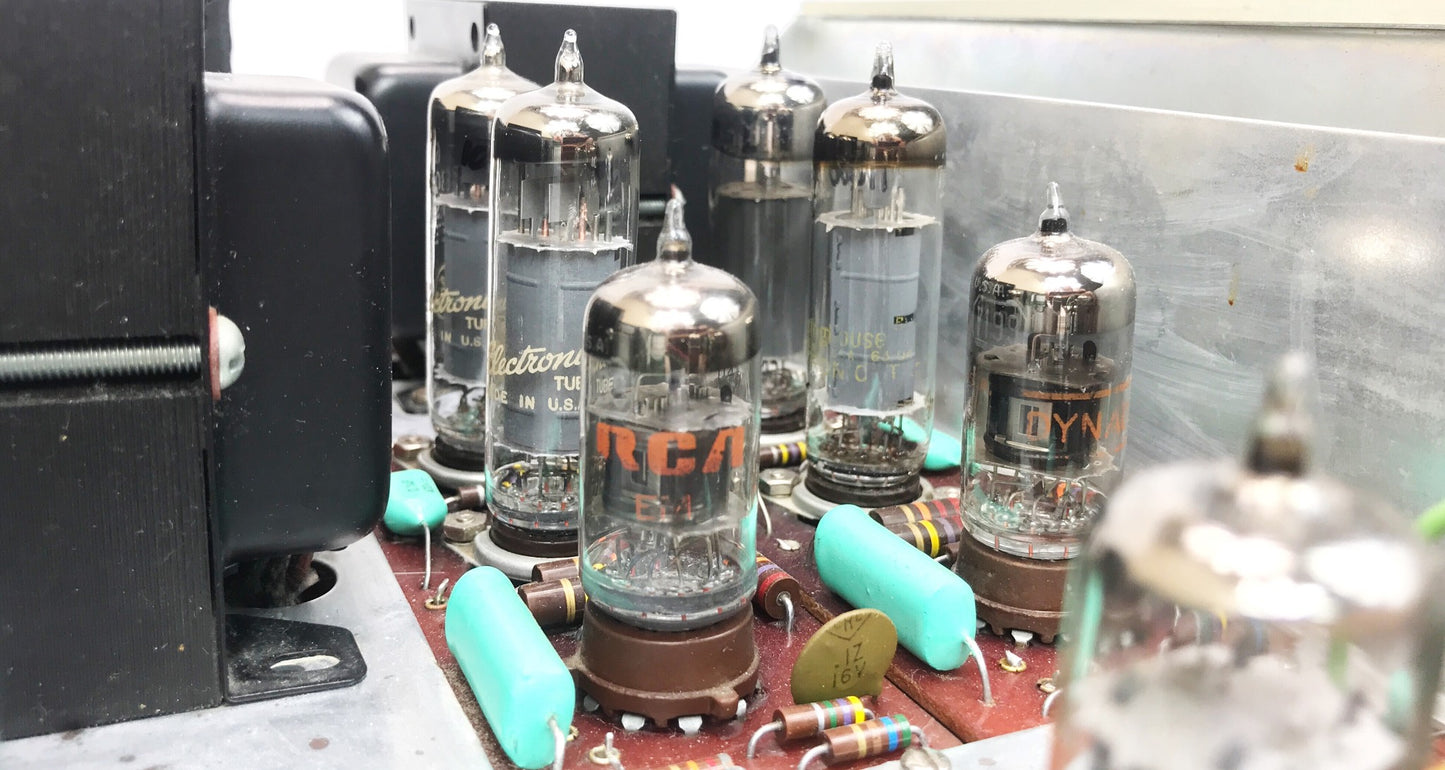

- Tube Compliment: 2x 12AX7 / ECC83, 2x 7199, 4x 6BQ5 / EL84 / 7189
- Silicon Diodes: 2x 500 MA, 100 PIV
- Power Consumption: 110 watts, 120 volts 60 Hz AC
- Special Features: Attractive Champagne-gold anodized aluminium front panel and die-cast knobs, 2 AC convenience outlets; provision for headphone output or center-channel level control; center speaker output; power transformer sealed in special encapsulating material for coolest, quietest operation.
- Dimensions: 13.5" x 4.25" x 10.0"
- Weight: 20lbs.
